Fine Positioner

Model: MPC-05
Ask a Question
Shipping Weight: 0.2kg

Unit Price: $25.00

25 reward points
-+ Units




Product Description
Reviews
Payment & Delivery



Features:

  • Providing fine height adjustment to the model MPC-03 platform

  • Provides a travel range of 10mm



Description:


The MPC-05 optical support rod fine positioner provides fine height adjustment via a cap screw that engages a M8 tapped hole in either end of an optical support rod mounting platform. The cap screw runs in ball bearings and provides a height adjustment range of 10 mm.



Specifications:


Model

MPC-05

Inside Diameter 38mm

Thread Type

M8

Weight

0.137kg

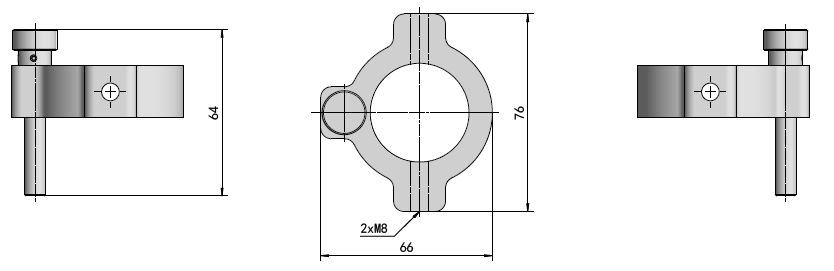

Drawing:


Rod Clamp




Auto CAD (.PDF) and SolidWorks Model (.STEP):



  MPC-05(.pdf)



  MPC-05(.zip)
