Motorized Rotary Table

Model: MOR-200-90
Ask a Question
Shipping Weight: 10kg

Unit Price: $1,100.00

1100 reward points
-+ Units





Product Description
Reviews


Features:

  • Same center of aperture and platform for easy postioning.

  • Shaft system is precisely made by bearing steel, high precision and load capacity.

  • Match lapping worm and gear structure, comfortable movement, small backlash.

  • Clearance elimination structure design for long time working.

  • Laser marking degree scale for reading and positioning.

  • NEMA 23 stepper motor drive and DB9 interface.

  • Hand wheel for manual drive.




Description:



Our motorized rotation stages adopt match lapping worm and gear structure, and the shaft system is precisely made by bearing steel. The motorized rotary stages featured high precision and big load capacity. Specially, the clearance elimination structure is designed for long time working.



This motorized rotation stage has central aperture and zero position. The aperture diameter is 90mm. You also can choose the other motorized rotation stage (MOR-100-30) with smaller aperture.



It is connected with our motion controller via DB9 interface and it can be controlled by our computer software via RS232 interface on controller.

The scale ring on the top plate can be moved by hand. After you turn the stage to zero position, you can move the scale ring manually to align to 0 scale.

There's a hall effect switch (as the zero position) built in the rotation stage, so the rotation stage can't move at negative direction to pass over the zero position.




Specifications:



Model

MOR-200-90

Platform Diameter

200mm

Transmission Ratio

180:1

Repeatability

<0.005°

Motor Type

NEMA23 Stepper Motor(1.8°)

Maximum Static Torque

1.2Nm

Rated Current

2.8A

Maximum Speed

25°/sec

Resolution (8-subdivision)

0.00125°

Aperture Diameter

ø 90mm+0.025mm

Zero Position

Built-in(Hall Effect Switch)

Center Load Capacity

60kg

Weight

7.7kg

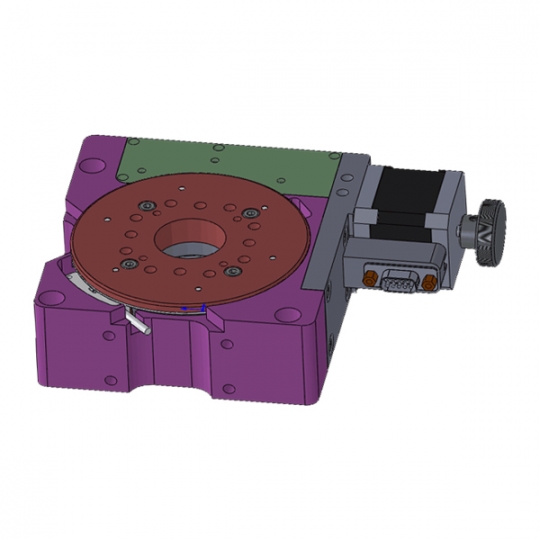

Drawing:






Motion Controller:



02 series motion controller can be used to control motorized stage with NEMA23 stepper motor. We have 220V and 110V power supply options for each motion controller. The USB line can be used to connect the motion controller to laptop. Please click following links to get more information.



MOC-02 Series Motion Controller (for NEMA23 Stepper Motor, 220V)



MOC-02 Series Motion Controller (for NEMA23 Stepper Motor, 110V)




Software & User Manual:














Reference:



  How to control MOR-200-90 by motion controller(PDF)



Pin Layout:



  Pin Layout of Motorized Rotation Stage (PDF)



Datasheet for Hall Effect Switch:



  Datasheet for Hall Effect Switch (PDF)



Datasheet of Stepper Motor:



  DataSheet of NEMA23-1.8 Stepper Motor.pdf (PDF)




SolidWorks Model(.STEP):



  MOR-200-90(RAR)
