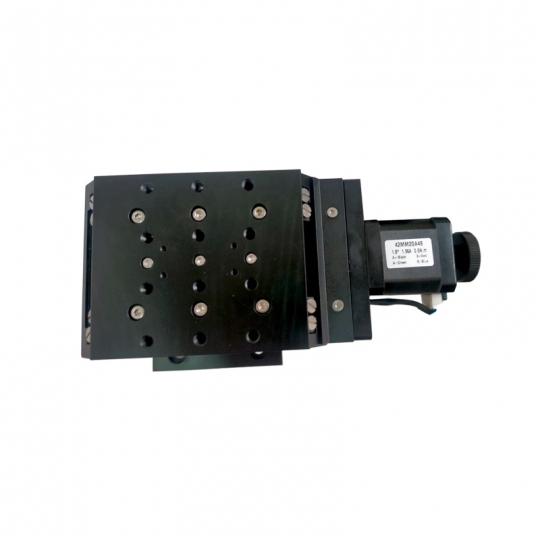

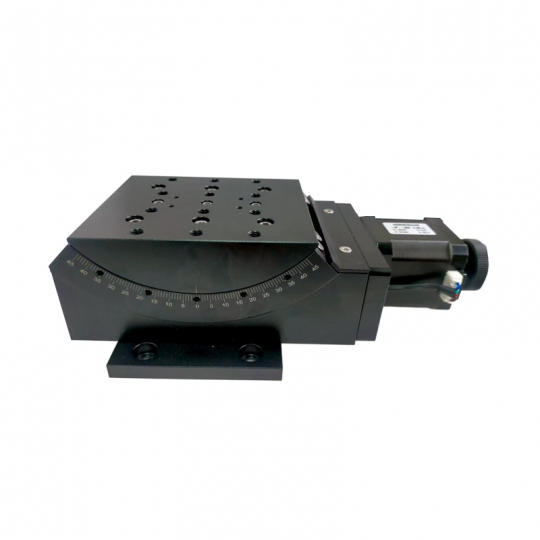

Motorized Goniometric Stage

Model: MOG-120-15
Ask a Question
Shipping Weight: 3.5kg

Unit Price: $1,235.00

1235 reward points
-+ Units





Product Description
Reviews
Payment & Delivery



Features:

  • Precision ground worm gear provides high resolution.

  • Precision machined ball bearing races assure smooth motion and high stability.

  • NEMA 17 stepper motor drive and DB9 interface.

  • Limit switch.

  • Hand wheel for manual drive.




Description:



Our motorized goniometer stage is designed so that orthogonal mounting of two adjacent-size cradles (e.g., MOG-120-15 and MOG-130-10) provides two perpendicular rotational axes intersecting at about the same point in space.



Precision rotation is ensured by a precision ground, hardened worm gear drive. Single row ball bearings and precision ground tool-steel races ensure smooth rotation with minimal wobble and eccentricity.



It is connected with our motion controller via DB9 interface and it can be controlled by our computer software via RS232 interface on controller.




Specifications:



Model

MOG-120-15

Travel Range

±15°

Platform Size

120mm x 120mm

Rotation Axis Height

120mm

Height

60mm

Guide Type

Arc Ball Guide

Transmission Ratio

300:1

Resolution (8 subdivision)

0.00075°

Repeatability

<0.004°

Motor Type

NEMA17 Stepper Motor(1.8°)

Maximum Speed

15°/sec

Rated Current

1.7A

Static Torque

0.4Nm

Horizontal Load Capacity

10kg

Weight

3.5kg




Drawing:






Motion Controller:



01 series motion controller can be used to control motorized stage with NEMA17 stepper motor. We have 220V and 110V power supply options for each motion controller. The USB line can be used to connect the motion controller to laptop.  Please click the following links to get more information.



MOC-01 Series Motion Controller (for NEMA17 Stepper Motor, 220V)



MOC-01 Series Motion Controller (for NEMA17 Stepper Motor, 110V)




Pin Layout:



  Pin Layout of Motorized Goniometer Stage (PDF)




Datasheet of Stepper Motor:



  DataSheet of NEMA17-1.8 Stepper Motor.pdf (PDF)




SolidWorks Model(.STEP):



  MOG-120-15(.zip)
