Miniature Linear Stage

Model: MAX-B34C-13
Ask a Question
Shipping Weight: 0.1kg

Unit Price: $60.00

Table Size(mm)



Travel Range(mm)



Feeding Method

Feed Knob Position



Guiding Mechanism



Main Materails


60 reward points
-+ Units





Product Description
Reviews
Payment & Delivery



Features:

  • Compact design

  • Light weight

  • Low profile

  • Micrometer head drive


Description:



The manual linear stage uses Ball Bearing & Rolling Steel Rods guide which ensures the high precision and smooth of motion. The main material of the manual linear stage is aluminum alloy, so the weight of manual linear stage is very light and the stage can be easily built in other equipment.

Standardized design makes it very easy to stack xy stage and xyz configuration with matched angle bracket.




Specifications:



Model

MAX-B34C-13

Platform Size

34x34mm

Travel

±6.5mm

Drive

Micrometer(Centre)

Travel Guide

Ball Bearing & Rolling Steel Rods

Graduation

0.01mm

Sensitivity

0.002mm

Accuracy

0.005mm

Load Capacity

1kg

Weight

0.07kg

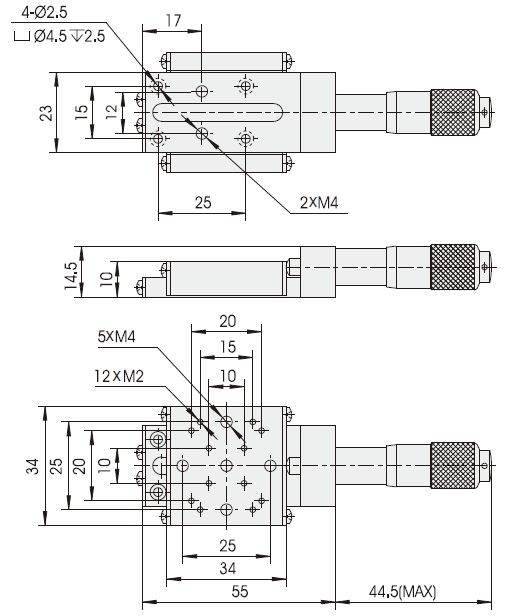

Drawing:






SolidWorks Model(.STEP):



  MAX-B34C-13(.zip)
